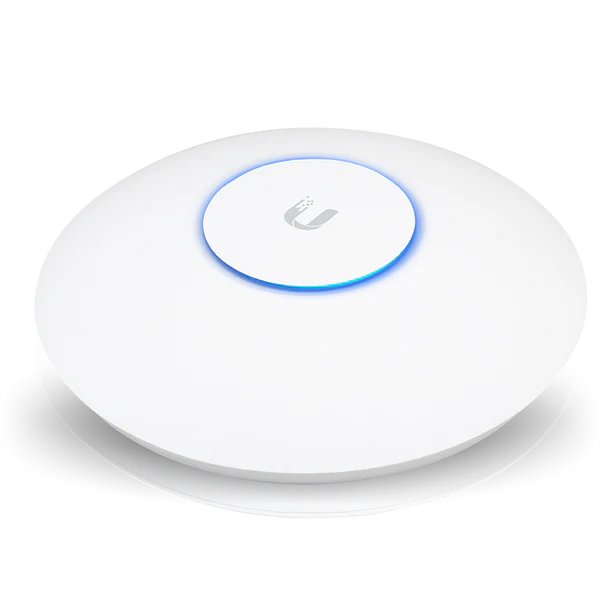

Ubiquiti Unifi AC HD (UAP-AC-HD) Access Point
- 5 GHz (4×4 MU-MIMO) band with a 1.7 Gbps throughput rate
- 2.4 GHz (4×4 MIMO) band with a 800 Mbps throughput rate
- PoE Mode: 802.3at PoE+
- Max power consumption: 17W
- Ports: (2) 10/100/1000 Ethernet
- Max users: 500+ Wifi users
Ubiquiti Unifi AC HD (UAP-AC-HD) Access Point
The Ubiquiti UAP-AC-HD is and indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters. Ubiquiti Unifi AC HD (UAP-AC-HD) Access Point is an 802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience. The Ubiquiti UniFi AP AC HD features the latest in Wi-Fi 802.11AC Wave 2 MU-MIMO technology and a refined industrial design. The UAP-AC-HD is perfect for use both indoors and outdoors and has simultaneous dual band.
The UniFi AC HD AP is the first UniFi 802.11ac Wave 2 AP. Combining the performance increases from MU-MIMO technology and the use of 4×4 spatial streams, the UniFi AC HD AP delivers up to 125% greater performance* than a typical Wave 1 AP Below are some deployment examples. For optimal performance, useMU-MIMO clients. SU-MIMO clients will also benefit and gain up to 10-20% greater performance when used with the UniFi AC HD AP.
The Ubiquiti Unifi AC HD (UAP-AC-HD) Access Point is a high-performance, indoor/outdoor, 802.11 ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (4×4 MIMO) bands. The UAP AC HD also has a focused antenna pattern to enhance your network’s capacity and reduce interference from neighboring access points. This access point is powered with PoE+ and is equipped with (2) GbE RJ45 ports and (1) USB port to support multiple connection types. The UAP AC HD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Ubiquiti Unifi AC HD (UAP-AC-HD) Access Point Specifications
-Environment: Indoor/outdoor
-2.4 GHz rate: 800 Mbps
-5 GHz rate: 1733 Mbps
-PoE Mode: 802.3at PoE+
-Max power consumption: 17W
-Ports: (2) 10/100/1000 Ethernet
-Max users: 500+ Wifi users
Ubiquiti UniFi AP AC HD – Technical Specification
General
- Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89″)
- Weight: 700g (1.54 lb)
- With mounting kits: 830g (1.83 lb)
- Networking Interface: (2) 10/100/1000 Ethernet Ports
- Buttons: Reset
- Power Method: Passive Power over Ethernet (48V), 802.3at PoE+ Supported
- Supported Voltage Range: 44 to 57VDC
- Power Supply: 48V, 0.5A PoE Gigabit Adapter
- Power save: Supported
- Maximum Power Consumption
- TX Power
- 2.4 GHz: 6-25 dBm
- 5GHz: 6-25dBm
- Antennas
- 2.4 GHz: (2) Dual-Port, Dual-Polarity Antennas, 3 dBi each
- 5GHz: (2) Dual-Port, Dual-Polarity Antennas, 4 dBi each
- WiFi Standards: 802.11 a/b/g/n/ac/ac-wave2
- BSSID: Up to Four per Radio
- Wireless SecurityL: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Mounting: Wall/Ceiling (Kits Included)
- Operating Temperature: -10 to 70° C (14 to 158° F)
- Operating Humidity: 5 to 95% Noncondensing
- Cerfiications: CE, FCC, IC
Advanced Traffic Management
- VLAN: 802.1Q
- Advanced QoS: Per-User Rate Limitingl
- Guest Traffic Isolation: Supported
- WMM: Voice, Video, Best Effort, and Background
- Concurrent Clients: 500+
Supported Data Rates (Mbps)
- Standard Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
- 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
