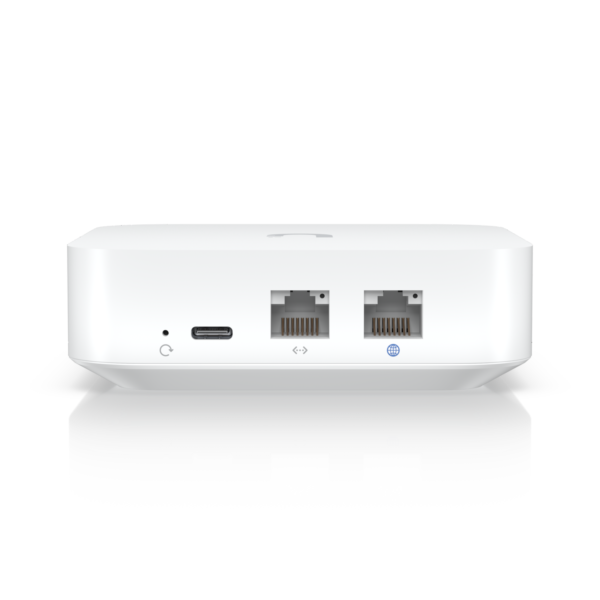

Ubiquiti UXG-Lite Gateway Next-Generation Gateway Lite

Ubiquiti UXG-Lite Gateway Next-Generation Gateway Lite

The Ubiquiti UXG-Lite Gateway is a compact UniFi gateway built for small offices, retail branches, and professional home networks that need reliable routing plus strong security controls. Moreover, it delivers advanced features like IPS/IDS, QoS, and Smart Queues in a simple two-port design. Therefore, you get a clean, modern gateway that fits neatly on a desk or shelf while staying easy to manage in UniFi.

Product Overview

This Next-Generation Gateway Lite is designed for environments where you want UniFi routing without a bulky appliance. In addition, it supports a full suite of routing and security capabilities, including a stateful firewall and application-aware controls. As a result, you can build a clear network policy for everyday business traffic and standard remote access needs.

Management is handled through the UniFi ecosystem, so you can run it with a CloudKey, Official UniFi Hosting, or a UniFi Network Server. Moreover, current tech specs list UniFi Network 8.3.32 and later as the application requirement. Consequently, it fits teams that prefer a single dashboard for day-to-day monitoring and configuration.

Key Features

• Up to 10x routing performance increase vs USG (tested with IPS/IDS, QoS, Smart Queues) → Therefore, you can keep key protections and traffic shaping enabled while maintaining fast routing.

• Advanced security suite (stateful + Layer 7 firewall, IDS/IPS, content filtering, ad blocking, DPI) → In addition, you can apply clear policies for safer, professional network use.

• License-free SD-WAN + VPN options (Site Magic, IPsec, OpenVPN, WireGuard, Teleport) → Moreover, you can connect sites and users using widely adopted standards.

• Dynamic routing support (OSPF) + advanced NAT + policy-based routing → Consequently, the gateway can fit more structured network designs when needed.

• 1 GbE WAN + 1 GbE LAN → However, the layout stays simple, which helps when you want a clean, predictable deployment.

• USB-C powered (adapter included) → Finally, you get a compact power setup that suits desktops and small comms areas.

Technical Specifications

• Brand: Ubiquiti

• Model: UXG-Lite (Gateway Lite)

• Product: Ubiquiti UXG-Lite Gateway

• Form factor: Compact desktop

• Dimensions: 98 × 98 × 30 mm (3.9 × 3.9 × 1.2″)

• Weight: 320 g (11.3 oz)

• Enclosure material: Polycarbonate

• Processor: Dual-core ARM Cortex-A53 @ 1 GHz

• System memory: 1 GB

• Ports: (1) GbE RJ45 WAN, (1) GbE RJ45 LAN

• IDS/IPS throughput: 1 Gbps

• Max power consumption: 3.83 W

• Power method: USB Type-C (5V DC / 3A)

• Power supply: USB Type-C adapter included (5V DC / 3A)

• Supported voltage range: 100–240V AC

• Operating temperature: -10 to 40°C (14 to 104°F)

• Operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC, Anatel

• NDAA compliant: Yes

• Warranty: To be confirmed (verify local distributor terms)

• Software requirement: UniFi Network 8.3.32 and later
