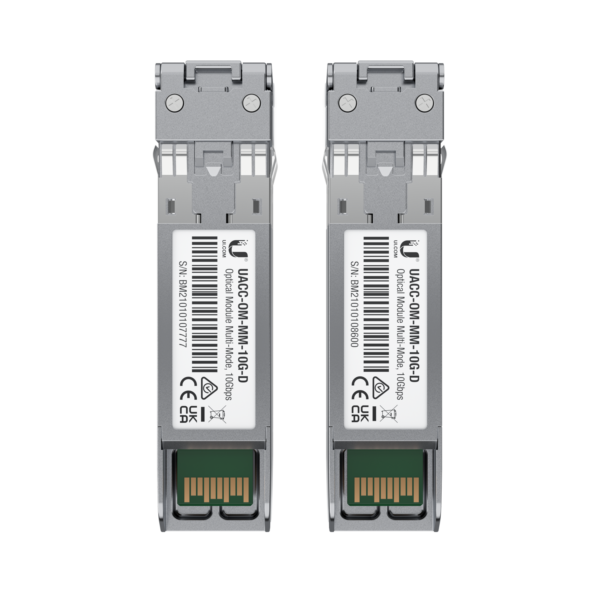

Ubiquiti UACC-OM-MM-10G-D-2 10G Multi-Mode Optical Module 2-Pack

Ubiquiti UACC-OM-MM-10G-D-2 10G Multi-Mode Optical Module 2-Pack

The Ubiquiti UACC-OM-MM-10G-D-2 10G Multi-Mode Optical Module 2-Pack is a professional optical transceiver solution designed for stable 10G fiber connectivity in modern network environments. It supports multi-mode fiber connections up to 300 m and uses a duplex LC UPC connector for reliable integration with supported devices. Moreover, it is suitable for businesses, installers, and IT teams that need dependable high-speed optical links for structured network deployments.

Overview

This optical module is built for use with compatible SFP+ and SFP interfaces, which makes it a flexible option for a wide range of fiber networking applications. In addition, it supports both 1 Gbps and 10 Gbps data rates, allowing it to fit into professional installations that require efficient and consistent optical performance.

The module uses 850 nm for both transmit and receive wavelengths and is designed for multi-mode fiber environments. Therefore, it is well suited for data cabinets, enterprise networks, server rooms, and structured cabling projects where short-distance high-speed fiber connectivity is required.

Key Features

• Supports up to 10 Gbps data rate for high-speed optical communication

• Compatible with SFP+ and SFP interfaces for flexible deployment

• Duplex LC UPC connector for reliable fiber termination

• Supports multi-mode fiber links up to 300 m for short-distance backbone and uplink connections

• Supports 1 Gbps and 10 Gbps data rates for broader compatibility

• Low power consumption of 0.8 W for efficient operation

• Available in single unit, 2-pack, and 20-pack options for flexible deployment needs

• Operating temperature range of 0 to 70°C for standard networking environments

Technical Specifications

• Brand: Ubiquiti

• Model: UACC-OM-MM-10G-D-2

• Product Name: Ubiquiti UACC-OM-MM-10G-D-2 10G Multi-Mode Optical Module 2-Pack

• Form Factor: SFP

• Connector: Duplex LC UPC

• Supported Media: Multi-Mode Fiber

• TX Wavelength: 850 nm

• RX Wavelength: 850 nm

• Supported Data Rate: 1 / 10 Gbps

• Supported Cable Distance: 300 m (984 ft)

• Max. Power Consumption: 0.8 W

• Pack Options: Single Unit, 2-Pack, 20-Pack

• Ambient Operating Temperature: 0 to 70°C

• Safety Standard: Class 1 Laser Product, IEC/EN 60825-1:2014

• Important Warning: Do not look into the ends of the fiber optic cable or SFP module while converters are powered
