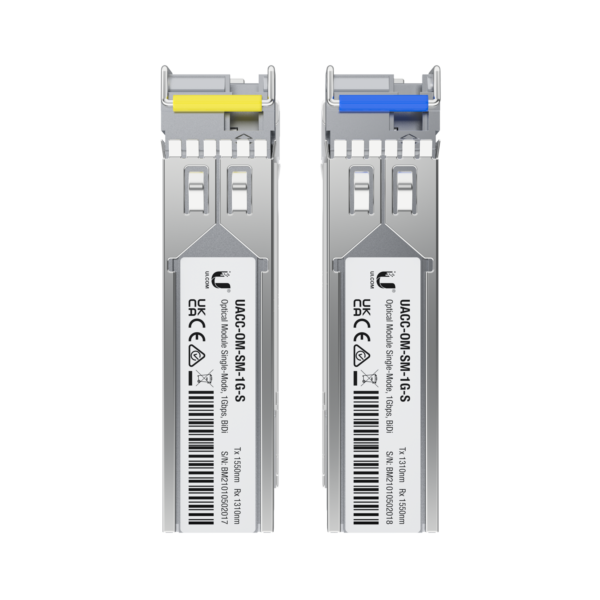

Ubiquiti UACC-OM-SM-1G-S-2 1G Bidirectional Single-Mode Optical Module 2-Pack

Ubiquiti UACC-OM-SM-1G-S-2 1G Bidirectional Single-Mode Optical Module 2-Pack

The Ubiquiti UACC-OM-SM-1G-S-2 1G Bidirectional Single-Mode Optical Module 2-Pack is a professional SFP transceiver solution designed for stable 1 Gbps fiber connectivity. It supports bidirectional single-mode transmission over a single fiber strand and is suitable for structured network installations that require clean, efficient, and dependable links. Moreover, its support for distances up to 3 km makes it ideal for office, campus, and enterprise network extensions.

Overview

This optical module is built for use with compatible SFP interfaces and supports single-mode fiber connections through a simplex LC UPC connector. In addition, the bidirectional design allows transmit and receive functions on one fiber strand, which can help simplify cabling in suitable deployments.

The module supports TX wavelengths of 1310 / 1550 nm and RX wavelengths of 1550 / 1310 nm. Therefore, it is well suited for professional fiber installations where stable Gigabit performance, reduced cable use, and neat deployment are important.

Key Features

• 1 Gbps supported data rate for reliable Gigabit fiber communication

• Bidirectional single-mode design for transmit and receive over one fiber strand

• Simplex LC UPC connector for compatible fiber terminations

• Supports cable distances up to 3 km for longer network runs

• Compatible with SFP interfaces for flexible integration

• Low power consumption of 0.66 W for efficient operation

• Supplied as a 2-pack for convenient paired deployment

• Suitable for standard network environments with an operating temperature range of 0 to 70°C

Technical Specifications

• Brand: Ubiquiti

• Model: UACC-OM-SM-1G-S-2

• Product Name: Ubiquiti UACC-OM-SM-1G-S-2 1G Bidirectional Single-Mode Optical Module 2-Pack

• Form Factor: SFP

• Connector: Simplex LC UPC

• Supported Media: Single-Mode Fiber

• BiDi Support: Yes

• TX Wavelength: 1310 / 1550 nm

• RX Wavelength: 1550 / 1310 nm

• Supported Data Rate: 1 Gbps

• Supported Cable Distance: 3 km (1.9 mi)

• Max. Power Consumption: 0.66 W

• Pack Option: 2-Pack

• Ambient Operating Temperature: 0 to 70°C

• Safety Standard: Class 1 Laser Product, IEC/EN 60825-1:2014

• Important Warning: Do not look into the ends of the fiber optic cable or SFP module while converters are powered
