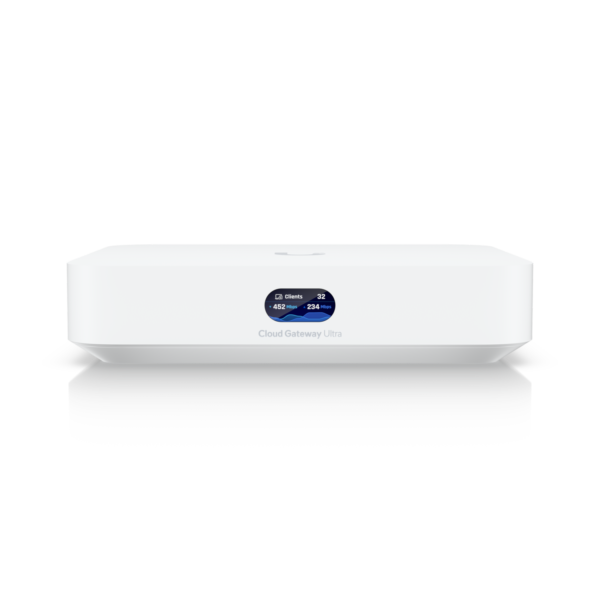

Ubiquiti UCG-Ultra Cloud Gateway Ultra

Ubiquiti UCG-Ultra Cloud Gateway Ultra

The Ubiquiti UCG-Ultra Cloud Gateway Ultra is a compact, high-performance gateway available from Dataworld Systems Limited, designed for small businesses, branch offices, and advanced home networks. It combines routing, security, VPN, and SD-WAN capabilities into a single device. Therefore, it enables professional network management without complex infrastructure while supporting modern connectivity and security needs.

Built on the UniFi platform, this gateway offers centralized control and reliable performance. As a result, it suits environments that need scalability, visibility, and strong protection for daily business operations.

Product Overview

This cloud gateway runs the UniFi Application Suite and can manage more than 30 UniFi devices from one interface. In addition, it supports over 300 simultaneous users, making it suitable for growing organizations. As a result, network administrators gain full visibility and control without adding extra hardware.

The compact desktop design fits neatly into offices and IT spaces. Moreover, USB Type-C power simplifies installation and reduces clutter. With a quad-core ARM processor and ample memory, the gateway handles firewall inspection, VPN connections, and traffic routing efficiently.

Key Features

• Multi-WAN support (up to 4 WANs) → improves redundancy and load balancing

• Stateful and Layer-7 firewall → enhances network security and traffic control

• IDS/IPS throughput up to 1 Gbps → protects against known threats

• License-free SD-WAN → reduces long-term operating costs

• Advanced VPN options → supports secure remote and site-to-site connectivity

• Advanced QoS and traffic identification → prioritizes business-critical apps

• Integrated RADIUS server → simplifies authentication and access control

• Compact desktop form factor → ideal for professional environments

Technical Specifications

• Brand: Ubiquiti

• Model: UCG-Ultra

• Product Type: Cloud gateway / router

• Dimensions: 141.8 × 127.6 × 30 mm

• Weight: 520 g

• WAN Ports: 1 × 2.5 GbE RJ45 (default), up to 4 WANs supported

• LAN Ports: 4 × 1 GbE RJ45

• IDS/IPS Throughput: 1 Gbps

• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz

• Memory / Storage: 3 GB RAM / 16 GB onboard storage

• Power Method: USB Type-C (5V DC, adapter included)

• Maximum Power Consumption: 6.2 W

• Operating Temperature: -10 to 40 °C

• Certifications: CE, FCC, IC, Anatel

• Reference Name: Ubiquiti UCG-Ultra Cloud Gateway Ultra
